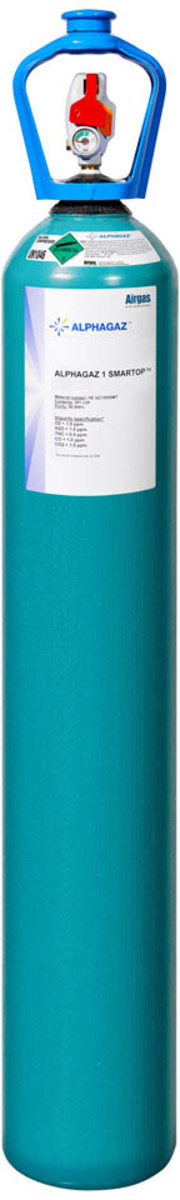

ALPHAGAZ™1 With SMARTOP™ Grade Air, Size 300 High Pressure Steel Cylinder, CGA 590
Airgas Part #:AI AZ1300SMT
Manufacturer Part #:AZ1300SMT
Log in to get your price
Cylinder
Enter Delivery Zip Code or Log In
Cylinder contains approximately 336 Cubic Foot (FT3)
About this product
- At Airgas, we understand specialty gases and what you need to successfully achieve accurate results. ALPHAGAZ 1 with SMARTOP Grade Air exceeds the purity recommendations of most laboratory instrument manufacturers and is ideal for any analytical and process control applications. In addition to guaranteed purity and consistency, ALPHAGAZ 1 comes equipped with SMARTOP cylinder valve technology that protects gas purity and helps you better manage gas use and improve safety. With a unique ergonomic top, visible on/off levers and at-a-glance cylinder content readings, your team always knows when the cylinder is open and how much gas you have left.See the Air pages under the Pure Gases Tab on the Menu of our Specialty Gas & Equipment Catalog for detailed gas purity information.
Specifications
| GAS GRADE | % PURITY | O2 | H2O | THC | CO | CO2 |
|---|---|---|---|---|---|---|
| Alphagaz1 with SMARTOP™ | 99.999 | - | <1 | <0.5 | <0.5 | <0.5 |
*Concentrations given are ppm by volume unless otherwise specified.
Product Attributes
CGA Connection
• CGA 590Gas Grade
• ALPHAGAZ™1
Features
- Airgas operates its own dedicated blending facilities as well as maintains a national network of blending technology to ensure accurate, consistent production.
- This product is equipped with the SMARTOP valve for improved safety and ease of use.
- Individual or Batch Certificate of Analysis available upon request.
Applications
- Alphagaz1 grade is used as a support gas chromatography, for FID applications. This product is equipped with the SMARTOP valve for improved safety and ease of use.
Safety
- Always use in accordance with the Safety Data Sheet (SDS)
- Always follow local fire code requirements when storing gas cylinders.
- Cylinder must be stored and used in an upright, secured position in a well-ventilated or monitored area.
- Major Hazards: High pressure, Compressed Gas
Specifications
Sizes may vary by location. Contact your local Airgas representative or local branch location for availability in your area.
DIMENSIONS
Size
300 Steel HP
DOT Specification
3AA - 2400 - Canada 3AA - M183
O.D.
9.25" - 235 mm
Length
55" - 1397 mm
Weight
132 lbs - 60 kg
Water Volume
2990 Cubic Inches - 49 ltrs
